Why Choose Our FRP Cage Ladder
Industrial FRP Cage Ladder Manufacturer
- Our FRP cage ladder uses NSF-certified materials for the manufacturing of pultruded profiles, compliant with NSF/ANSI 61 standards.
- We have customized production according to your project drawing and site conditions.
- We provide strong engineering support, including material selection guidance for chemical, coastal, and electrical environments.
- We have export-ready packaging and container solutions to protect products during long-distance shipment.
- Our FRP cage ladders have long service life with minimal maintenance, reducing total lifecycle cost compared to steel ladders.
Your Reliable FRP Cage Ladder Supplier in China
Our FRP Cage Ladder is engineered for safe and reliable vertical access in harsh industrial environments. It is made of high-strength pultruded fiberglass profiles and premium resin systems, which feature good corrosion resistance, electrical insulation, and long service life.
As a professional manufacturer, we customize ladder height, cage dimensions, resin systems, and mounting structures based on your drawings, provide technical support during design review, conduct inspections before shipment, and offer reliable production schedules for mass production.
It is suitable for installation on storage tanks, factory building exteriors, and equipment sides, which include side rails, handrails, and a complete safety cage system.

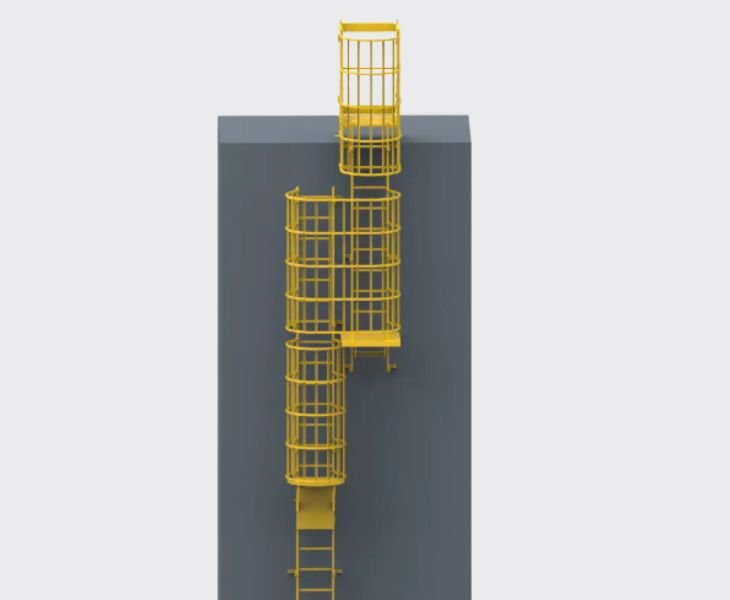

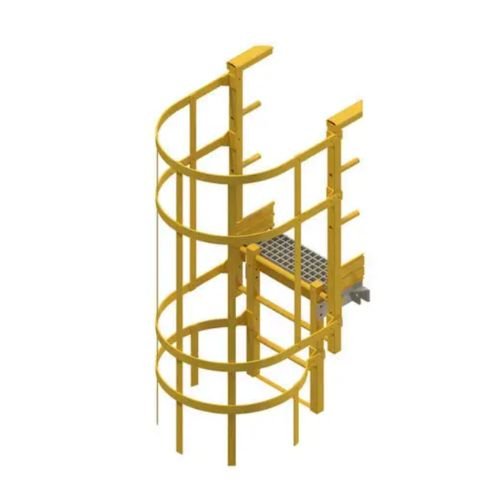

Adding rest platforms or transfer platforms in the middle or at the top is perfect for structures with a high height, which is convenient for segmented climbing and safe transition.Â

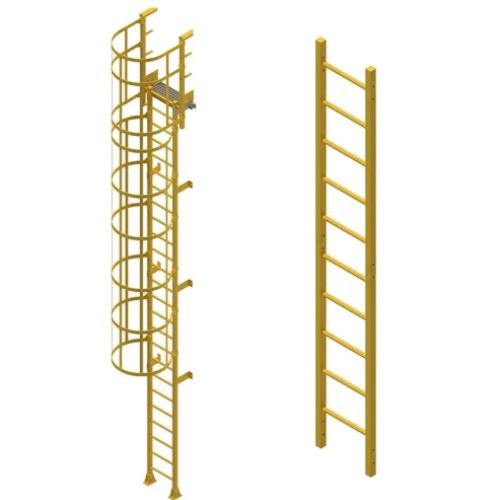

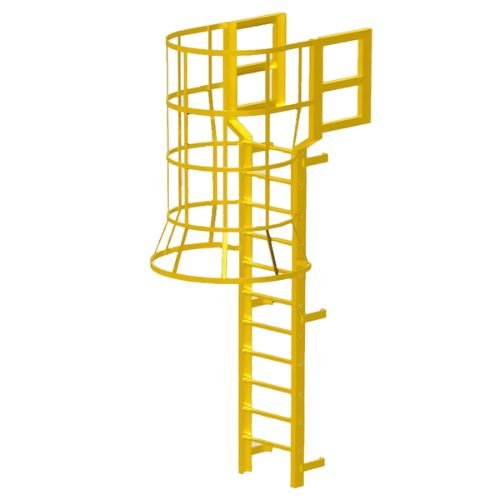

The top is equipped with handrails and transition devices, which facilitate safe access to the tank top, manholes, or operation platforms.
Features of FRP Cage Ladder
It is made of glass fiber reinforced profiles produced by the pultrusion process, and its glass content is approximately 50%. So it guarantees the ladder keeps stability under long-term stress.
Selecting a high-quality flame-retardant polyester resin system can resist corrosion caused by acids, alkalis, salt fog, and humid environments.
Adding flame retardants to the resin system can improve the safety and outdoor durability of ladders. Coating with protective layers will slow down the aging and fading caused by ultraviolet rays.
The FRP cage ladder is designed and manufactured in accordance with OSHA 1910 standards, which contains reasonable starting height, exit structure, and installation support system.
The FRP material itself is non-conductive and can try to avoid electric shock in electrical environments. It is well-suited for power facilities, substations, and the energy industry.
The steps adopt pultruded fiberglass pipes, with grooves on the surface for an anti-slip texture. Even in damp or polluted environments, they can provide a stable grip and improve climbing safety.
Its weight is significantly lower than that of steel ladders, so it is convenient for transportation and installation. And it can withstand concentrated loads exceeding the requirements of OSHA.
The height of the stairs, the size of the stair cage, etc. All can be customized according to the drawings and on-site needs. The products can be pre-cut, pre-drilled, or partially pre-assembled for shipment.

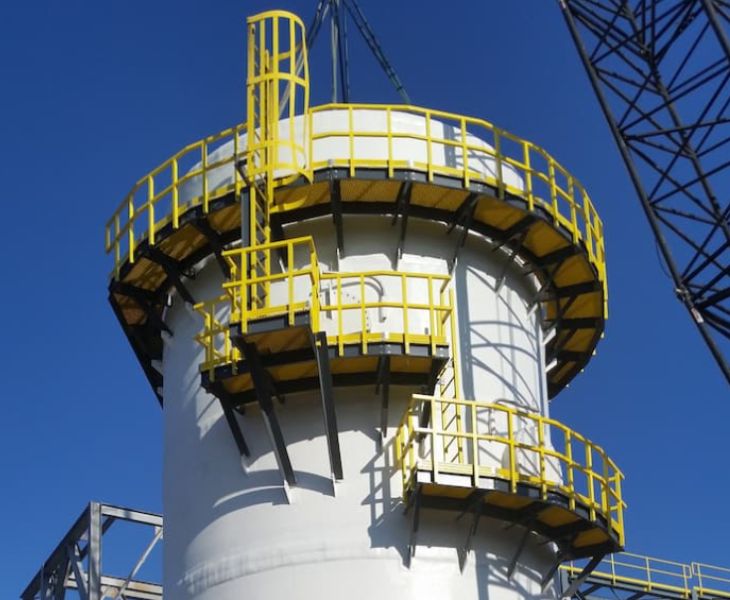

Built for Extreme Corrosive Environments
Our FRP cage ladders are manufactured by high-strength pultruded fiberglass profiles and corrosion-resistant resin systems, which can resist corrosion caused by acids, alkalis, salt fog, and humid environments for a long time. Different from steel ladders, they do not need repeated rust removal and painting maintenance, greatly lowering the post-operation maintenance costs. They are well-suited for highly corrosive environments, such as chemical plants, sewage treatment plants, coastal projects, and offshore platforms, etc.

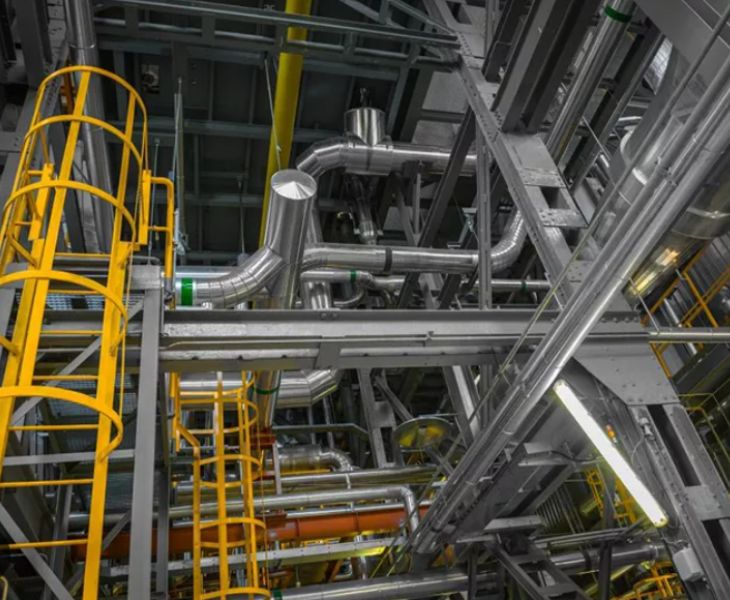

Engineered for Industrial Safety Compliance
The ladder body is equipped with an integrated safety cage structure, anti-slip grooved steps, and a high-visibility safety yellow design, which can improve safety during the process of vertical climbing. The system can be designed according to the OSHA standards for the starting height of the ladder cage and the top exit method. The FRP material is non-conductive, effectively lowering the electric power and avoiding the electric shock in energy facilities.
Project-Based Custom Manufacturing
Every FRP cage ladder is customized for production according to your drawing and site conditions, which can flexibly adjust height, ladder cage size, support structure, and resin type. The product provides pre-cutting, pre-drilling, and partial pre-assembly for shipping, which reduces the on-site installation time, improves the construction efficiency, and guarantees the project is delivered on schedule.
Application of FRP Cage Ladder
During the chemical production process, there are many corrosive substances, such as acids, bases, and various chemical gases. In this environment, ordinary steel ladders are prone to rust and lose their strength. The FRP cage ladder has stable chemical corrosion resistance and can be used in storage tanks, reaction equipment, and elevated operation areas.
Water treatment facilities have been exposed to a humid environment and chemical agents for a long time, and they have higher requirements for structural materials.FRP materials is resistance to water and corrosion, and are well-suited for sedimentation tanks, pump rooms, water tanks, and maintenance passages.
In power plants, substances, and other high-risk environments, the insulation performance of materials is of vital importance. The FRP cage ladders are non-conductive and have good moisture-proof performance, which is perfect for cable management areas and high-altitude equipment maintenance positions, so they can improve operational safety.
In the field of mechanical engineering, a stable vertical passage structure is required for equipment maintenance and structural support. The FRP cage ladder features good strength and rigidity and is lightweight. It is convenient for installation and structural integrity, and is suitable for use inside industrial buildings or on the exterior of equipment.
On the top of storage tanks, roof systems, and the exterior facades of industrial buildings, FRP cage ladders can serve as a long-term fixed passage system. They are lightweight but high-strength and have good weather resistance, so they are well-suited for long-term outdoor use.
Standard industrial designs usually meet or exceed OSHA requirements and can withstand a concentrated load of at least 90kg (200 lbs). If you have any requirements, the specific load-bearing capacity of our FRP cage ladders can be strengthened through structural reinforcement design.
The FRP cage ladder requires minimal maintenance compared to steel ladders. Daily maintenance only needs regular inspections of connections and anchor points.
Yes. The FRP material is resistant to salt fog and humid heat, so it performs stably on offshore platforms and in coastal storage tanks and does not corrode rapidly like metal materials.
The FRP cage ladder is usually pre-cut, drilled, and pre-assembled in the factory before being shipped, lowering on-site construction time. It is lightweight, easy to handle, and highly efficient to install. The complete system is shipped with accessories to guarantee compliance with current OSHA safety standards.
How to Choose the Right FRP Cage Ladder?
Choose a resin system based on the usage environments
- Flame-retardant polyester resin: It is the standard option, suitable for most industrial environments, and features good corrosion resistance, weather resistance, and flame retardancy.Â
- Vinyl ester resin: It performs better in more corrosive environments, especially in strong acids and alkalis, or severe salt spray conditions. When choosing the resin, you should consider the on-site medium, humidity, and temperature conditions.
Determine the starting height and dimensions of the ladder cage
OSHA has standard starting altitude requirements for a fixed cage, which is usually set at 7–8 feet (approximately 2.1–2.4 meters). If you don’t specify the starting altitude, we will set it automatically according to OSHA. Besides, when selecting ladder cages, you should confirm the total height of the ladder and the length of each rung.
Select colors and protective coatings
The standard color scheme of the FRP cage Ladder is a highly visible safety yellow color, which is conducive to on-site identification and safety protection. If installed in an outdoor environment, it is suggested to apply a protective coating to delay color fading; otherwise, prolonged exposure to sunlight will cause the color to become lighter. According to your project requirements, we also provide other customized colors.

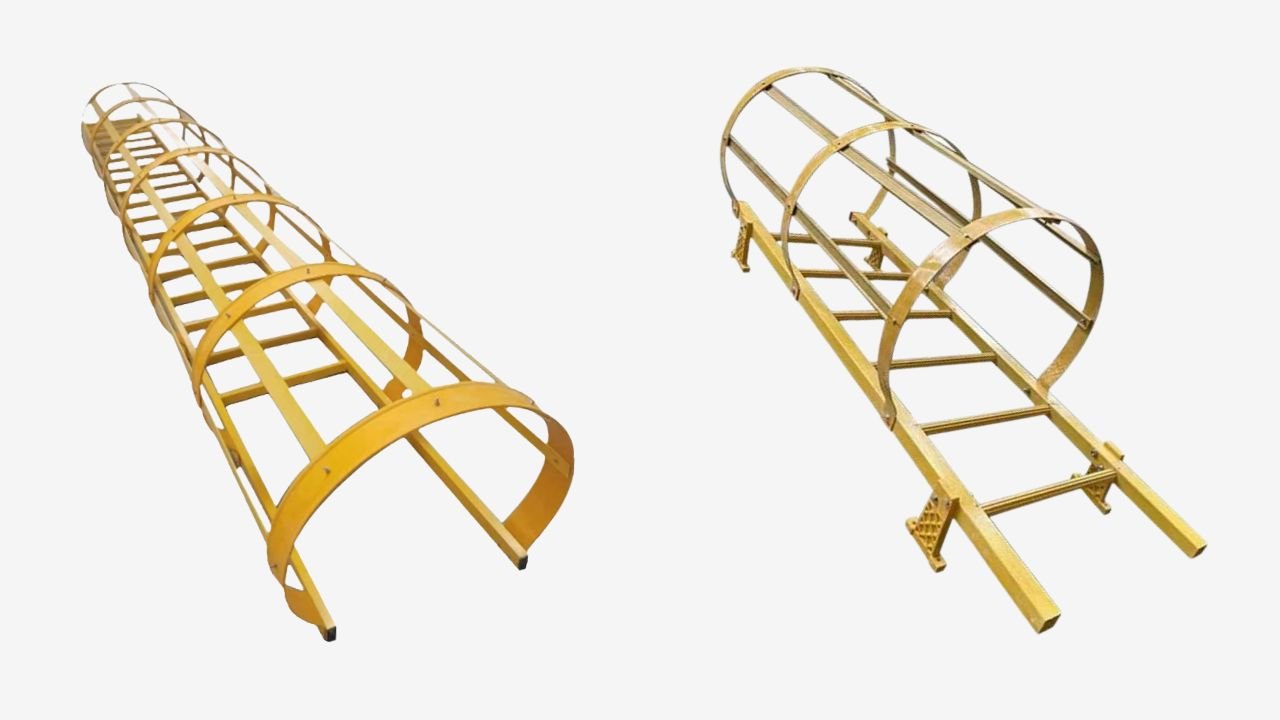

Select from the standard trapezoidal type or submit a drawing for customization

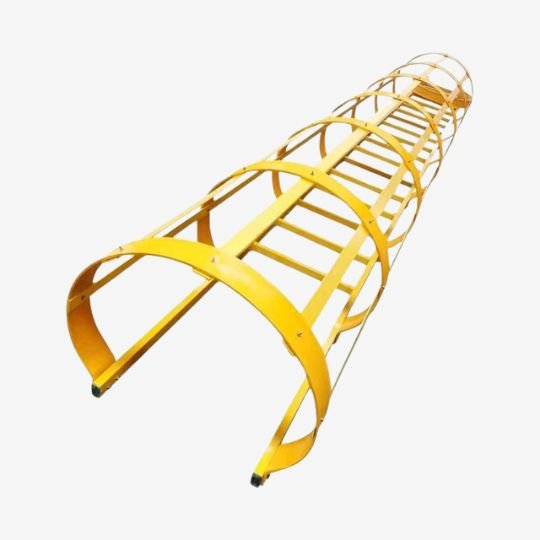

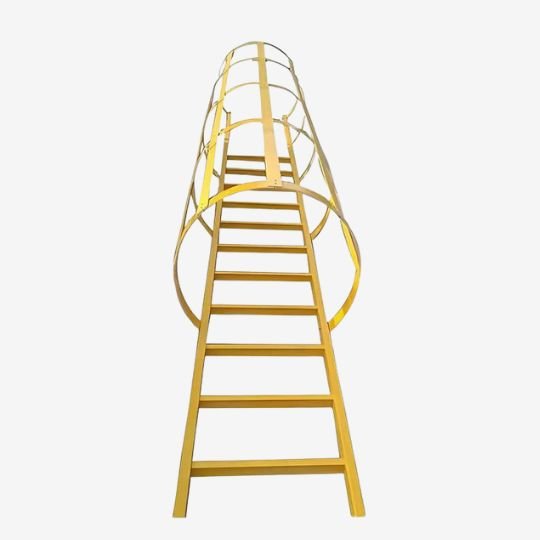

We offer several standard ladder types, you can choose directly based on common sizes.
If the standard models do not meet your requirements, you can offer project drawings or sketches to customize. The customized design includes complete parameters such as height, ladder cage form, outlet connection, and bracket configuration.
Consider the on-site installation and delivery strategiesÂ
- Confirm whether the ladder is shipped as a fully pre-assembled unit or requires on-site assembly. Pre-assembling can lower the construction time on site.Â
- If the on-site space is limited or the path is narrow, you can choose to deliver the goods in sections and assemble them on-site.Â
- The supports and accessories need to be confirmed in advance whether they will be shipped together with the main body.
